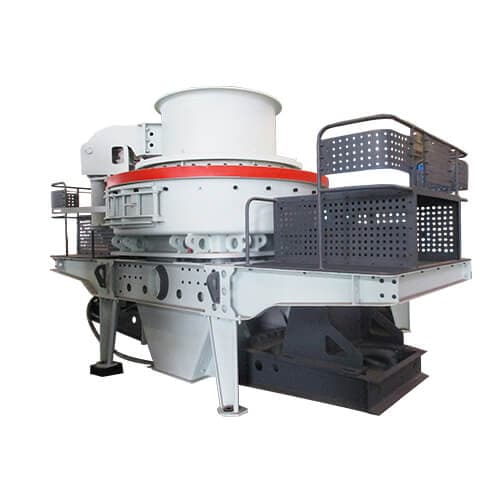

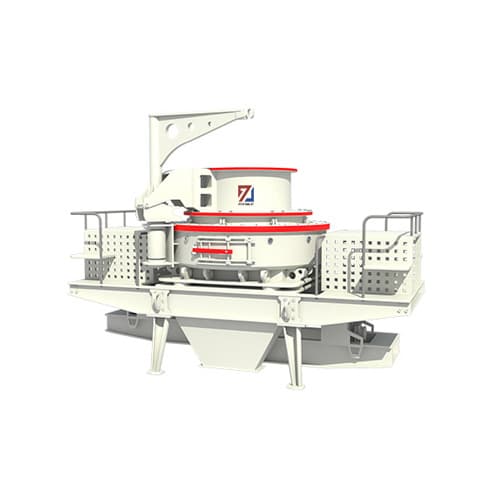

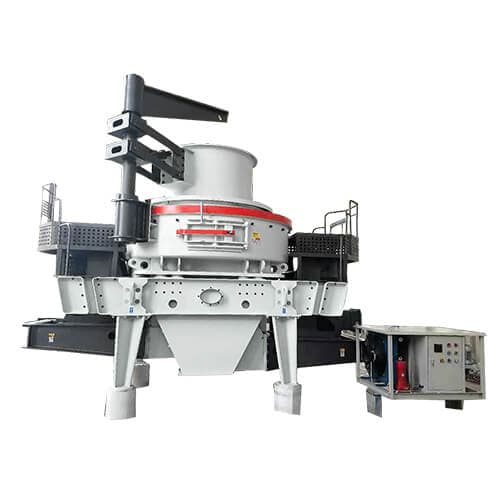

Vertical Shaft Impact Crusher

Vertical shaft impact crusher is also called sand making machine,artificial sand making machine or sand crusher. Impact sand making machine is widely used for fine crusher and coarse grinding of metal and non metal ores, cement, refractory material, grinding material, glass raw material, building aggregates, artificial sand and all kinds of metallurgical slags.

Motor Power:

150-630kw

Rotation speed:

900-1700r/min

Feed at center capacity:

60-480t/h

Solicitar presupuesto Consulta en línea enviar correo electrónico

Descripción del producto Configuración del producto Productos relacionados INQUIRIR

Vertical Shaft Impact Crusher Descripción del producto

Impact sand making machine is the latest technology introduced by our company.It is a perfect combination of professional crushing technology and mechanical manufacturing. It is a full embodiment of new technology and new technology.It cannot only provide the highest quality sand and gravel aggregate for highways and railways,high-rise buildings,municipal works,hydropower dam construction,port terminals,concrete mixing stations,etc, and is undisputedly the core of the mechansm sand industry and stone shaping industry device

Impact crusher is a kind of crushing machine that uses impact energy to crush materials. When the machine works, driven by the motor, the rotor rotates at a high speed. When the material enters the plate hammer action area, it collides with the plate hammer on the rotor and is crushed again, and then thrown to the impact device, and then bounces back from the impact lining plate to the plate hammer action area for re crushing. This process is repeated. The material enters the second and third impact chambers from large to small for repeated crushing, Until the material is crushed to the required particle size, it is discharged from the discharge port. Adjusting the gap between the counterattack frame and the rotor can change the discharge particle size and shape of materials.

Vertical Shaft Impact Crusher Configuración del producto

Model	Capacity(t/h)		Feed size(mm)		Rotation speed(r/min)	Motor Power(KW)
	Sacade falls and center feeding	Feed at center	Soft material	Hard material
VX7615	130-180	60-140	35	30	1300-1700	150
VX8522	200-260	120-200	40	35	1200-1500	200
VX9532	300-380	180-280	45	40	1100-1400	320
VX1145	400-460	250-360	50	45	1000-1300	440
VX1150	550-640	340-360	55	45	1000-1300	500
VX1263	650-850	400-480	60	50	900-1200	630
