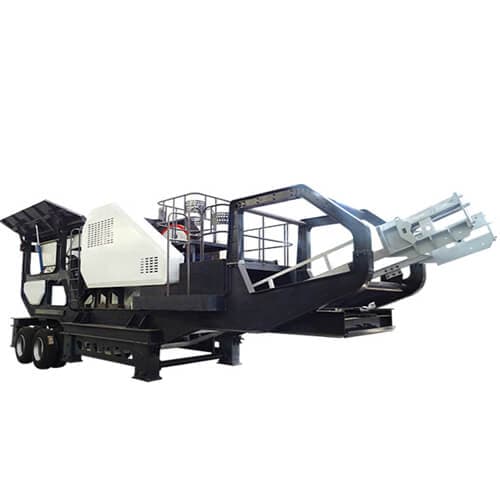

Mobile Jaw crushing plant

The mobile jaw crusher is equipped with a high-performance mobile jaw crusher. It is mainly suitable for the recycling and reuse of mines, coal mines, garbage and construction waste, earthwork engineering, urban infrastructure, roads or construction sites and other site operations.

Capacity:

50-500 tph

Discharging size:

≤1200mm

Input size:

0-30 mm

Solicitar presupuesto Consulta en línea enviar correo electrónico

Descripción del producto Configuración del producto Productos relacionados INQUIRIR

Mobile Jaw crushing plant Descripción del producto

Short length, light weight; strong maneuverability and strong adaptability, reducing material transportation costs and flexible combination - no matter coarse crushing, fine crushing or sand making operations, the design concept is to be more suitable for various situations of mobile crushing, reducing crushing site, environment, The basic configuration is an obstacle to customers' crushing operations, and it truly provides customers with simple, efficient and low-cost rock crushing equipment. The operation of mobile stone materials such as railways and hydropower projects.

The material is evenly transported into the crusher by the feeder. After the initial crushing of the jaw crusher, a closed-circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material. The finished material is output by the conveyor for continuous crushing operation.

Mobile Jaw crushing plant Configuración del producto

Model	YPGE0750	YPGE0960	YPGE1175	YPGE13108
Hopper	Integrates steel structure		Foldable steel structure
Feeder	GZT0724	GZT0932	GZT1148	ZSW6013
Jaw crusher	PE500X750	PE600X900	PE750X1060	PEW1208
Max feed size(mm)	425	500	630	750
Discharge mouth adjusting range	50-100	65-180	80-180	100-275
Capacity(t/h)	50-80	75-120	150-250	200-350
Discharge conveyor	B800	B800	B1000	B1400
Side conveyor belt	B500	B500	B500	B650
Hydraulic system	YZ10	YZ10	YZ30	YZ40
Power(kw)	73.3	77	139	206.5
Frame configuration	Double axles	Double axles	Three axles	Three axles
