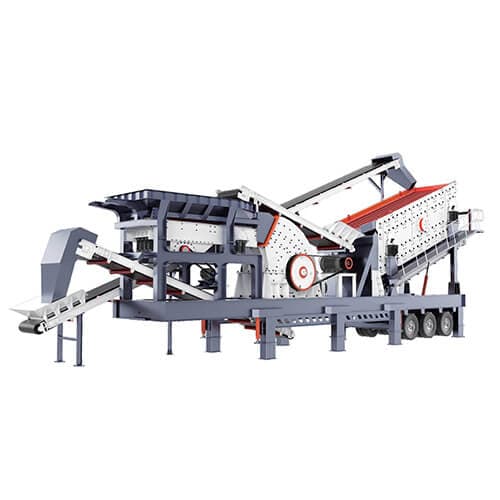

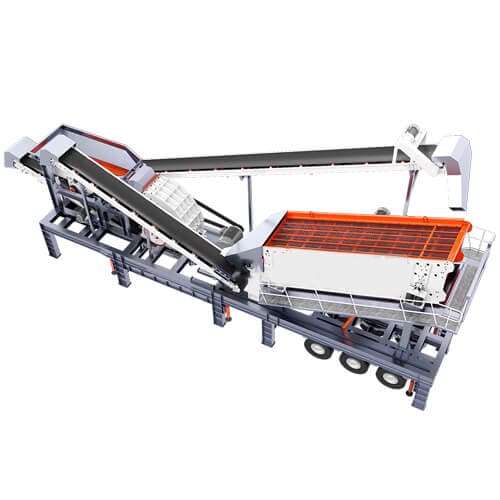

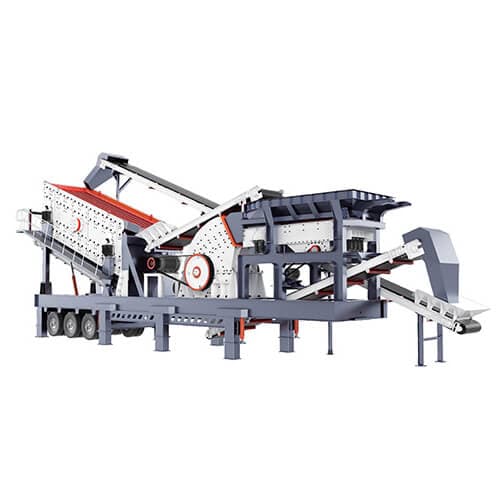

Mobile hammer crusher

The main working part of the mobile hammer crusher is the rotor with the hammer (also known as the hammer head). The rotor consists of a main shaft, a disc, a pin and a hammer.

Power:

5.5-400kw

Feed Size:

≤200*≤400mm

Output size:

≤30mm

Solicitar presupuesto Consulta en línea enviar correo electrónico

Descripción del producto Configuración del producto Productos relacionados INQUIRIR

Mobile hammer crusher Descripción del producto

The finished material of the mobile hammer crusher is cubic, with strong compressive capacity, and is suitable for high-standard construction needs. Maintenance and power saving costs are 50%-70% lower than ordinary crushers.

The motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feeding port, and is crushed by the impact, impact, shearing and grinding of the high-speed hammer. In the lower part of the rotor, there is a sieve plate, and the particle size smaller than the sieve hole size in the crushed material is discharged through the sieve plate, and the coarse particle size larger than the sieve hole size is retained on the sieve plate and continues to be hit and ground by the hammer, and finally passes through the sieve plate. out of the machine. If you need to change the site for production, you can activate the mobile device at any time to transfer the equipment to facilitate the production again.

Mobile hammer crusher Configuración del producto

Model	Feed size (mm)	Output size (mm)	Capacity (t/h)	Rotation speed (rpm)	Power (kw)	Weight (ton)	Dimension (mm)
PCH0402	≤200	≤30	44785	960	5.5	0.8	810890560
PCH0404	≤200	≤30	16-25	970	11	1.05	980890570
PCH0604	≤200	≤30	22-33	970	15	1.43	10501270800
PCH0606	≤200	≤30	30-60	980	30	1.77	135012701080
PCH0808	≤200	≤30	70-105	740	45	3.6	175016201080
PCH1010	≤300	≤30	160-200	740	90	6.1	210020001340
PCH1016	≤300	≤30	300-350	740	155	9.2	270020001350
PCH1216	≤350	≤30	620-800	740	355	15	496525001600
PCH1322	≤400	≤30	800	595	400	24.9	63333295250
