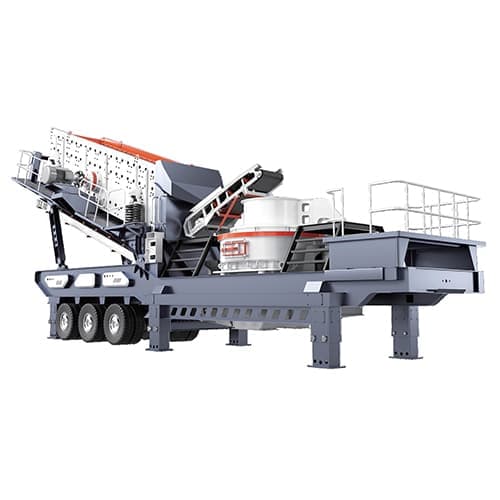

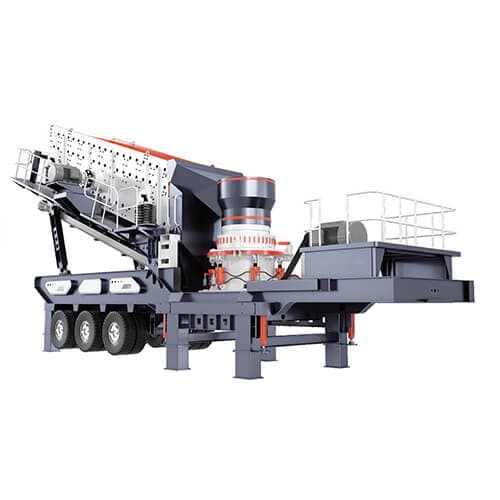

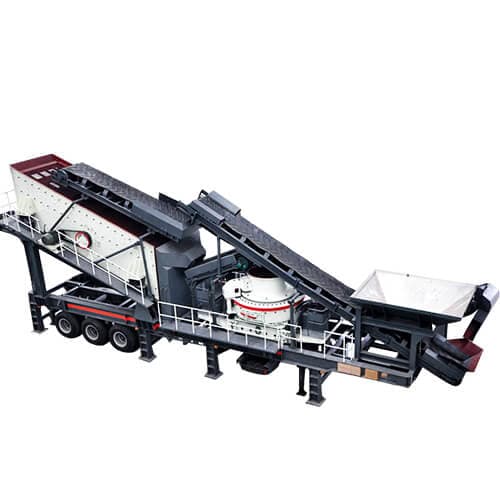

Mobile Cone crusher plant

The core crushing equipment of cone mobile crushing station is cone crusher. Sand and gravel yard, construction waste, coal mining, mining, concrete mixing station and other fields, processing construction waste, etc.

Capacity:

50-250t/h

Max feed size:

150-313mm

Power:

101.5-261kw

Solicitar presupuesto Consulta en línea enviar correo electrónico

Descripción del producto Configuración del producto Productos relacionados INQUIRIR

Mobile Cone crusher plant Descripción del producto

The mobile cone crusher belongs to the installation form of integrated unit equipment, which eliminates the complicated site infrastructure installation work of split components, and reduces the consumption of materials and man-hours. The reasonable and compact space layout of the unit improves the flexibility of site stationing.

mobile cone crusher plant.gif

The stone is evenly transported into the cone crusher by the feeder. After the initial crushing by the cone crusher, the screening control is carried out. Only the qualified stone can enter the next processing process. The closed-circuit system can realize the cyclic crushing of the material, and the finished material is Conveyor output, continuous crushing operation, the whole crushing process is smooth and efficient, the material flows at high speed between each equipment, bringing high benefits to users.

Mobile Cone crusher plant Configuración del producto

Technical Data//Model	YPYS0915	YPYS1318	YPYS1621	YPYS1321	YPYS1218
Max feed size(mm)	150	205	313	230	145
Capacity(t/h)	50-80	80-120	150-220	150-250	80-120
Frame	Double axles	Double axles	Three axles	Double axles	Double axles
Cone Crusher	PSGB0918	PSGB1324	PSGB1636	HPC220	PYB1200
Discharging Belt Conveyor	B650	B800	B1200	B1200	B800
Vibrating Screen Power(kw)	3YA1548	3YA1860	3YK2160	3YK2160	3YA1860
	Yz20	Yz20	Yz30	Yz30	Yz30
	101.5	193.5	261	261	143
