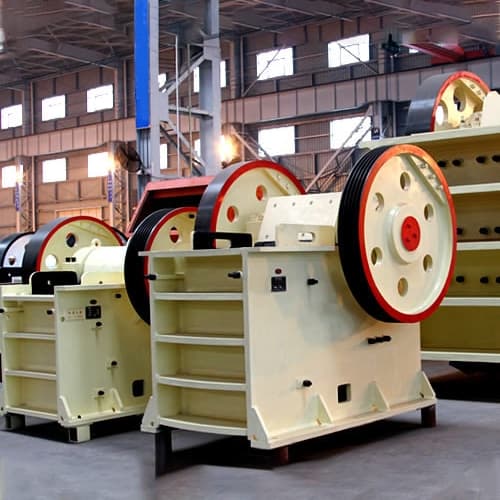

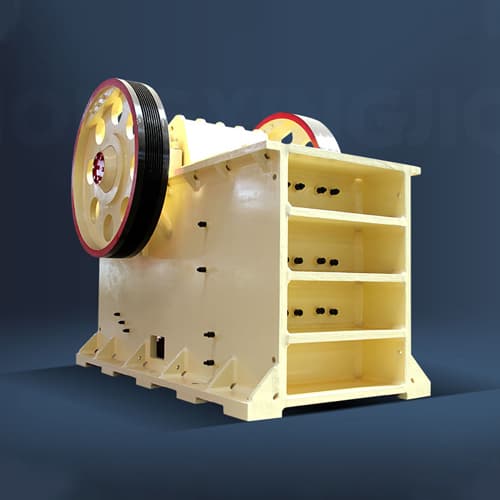

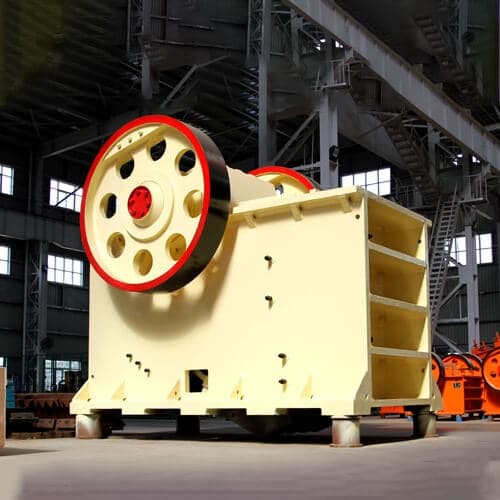

Jaw Crusher

Jaw crusher is widely used in the world market nowadays and the features of high crusher ratio, simple structure, and easy maintenance. It has two types, coarse and fine crushers. The compressive resistance of the crushed materials is up to the 320MPa.

Capacity:

5-800 t/h

Feed Size:

200-1020mm

Model:

PE or PEX Jaw Crusher

Solicitar presupuesto Consulta en línea enviar correo electrónico

Descripción del producto Configuración del producto Productos relacionados INQUIRIR

Jaw Crusher Descripción del producto

Jaw crusher is a kind of mining equipment and one of the most wide application of crushers in the world.The shape of crusher looks like a jaw of the animal, that's why we call it "jaw crusher".Many industries use the machine for primary and secondary crushing Jaw crusher is suitable for limestone, fly ash, coal powder, slag clay and other brittle materials.It also suitable to crush ores and rocks with medium hardness and above medium hardness. Wide application for a variety of industries , such as metallurgy, mine industry, chemical, building materials, electrical power, transport industry and so on.

The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

Jaw Crusher Configuración del producto

Model	Feed Opening Size (inch)	Feed Opening Size (mm)	Max. Feeding Size (mm)	Adjustable Range of Discharge Opening (mm)	Capacity (t/h)	Motor Power (kW)	Weight (t)	Overall Dimension (mm)
PE250×400	10x16	250×400	200	20-50	5-20	15	2.9	1430×1310×1340
PE400×600	16x24	400×600	350	40-100	15-60	30-37	6.8	1700×1732×1653
PE500×750	20x30	500×750	425	50-100	40-100	45-55	11.2	2035×1921×2000
PE600×900	24x36	600×900	500	65-160	60-140	55-75	16.5	2290×2206×2370
PE750×1060	30x42	750×1060	630	80-150	90-230	90-110	29	2655×2302×3110
PE900×1200	36x48	900×1200	750	95-165	150-350	110-132	54.5	3789×3050×3025
PE1000×1200	46x48	1000×1200	850	105-185	180-400	132-160	56.5	3900×3320×3280
PE1200×1500	48x60	1200×1500	1020	150-300	400-800	220-250	99.6	4300×3540×4043
PEX150×250	6x10	150×250	125	10-40	1-3	5.5	0.85	896×745×935
PEX150×750	6x30	150×750	125	12-45	5-16	15	3.8	1205×1495×1203
PEX250×750	10x30	250×750	210	25-60	10-40	22-30	5	1667×1545×1020
PEX250×1000	10x40	250×1000	210	25-60	15-50	30-37	6.8	1964×1550×1380
PEX250×1200	10x48	250×1200	210	25-60	20-60	37-45	8.5	2192×1605×1415
PEX400×1200	16x48	400×1200	320	35-95	28-95	45-55	11.7	2256×2100×1960
