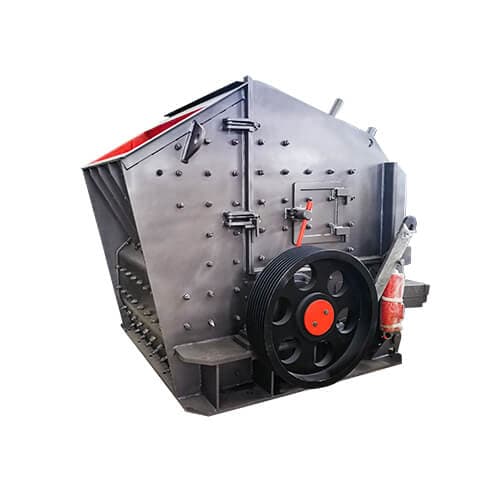

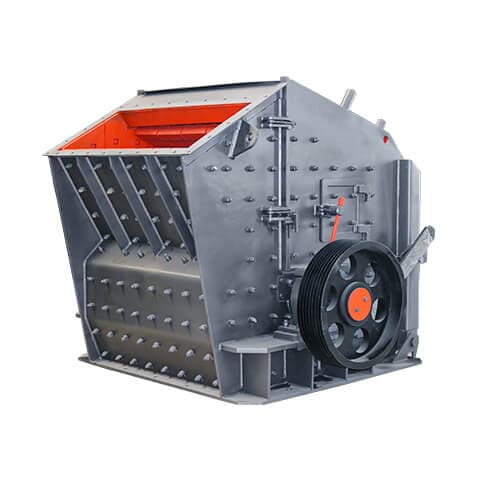

Impact crusher

Impact crushers are used in various ore crushing, railway, highway, energy, cement, chemical, construction and other industries. The size of the discharge particle size can be adjusted, and the crushing specifications are diversified.

Max.feeding:

300-450

Moter:

37-160kw

Capacity:

40-130t/h

Solicitar presupuesto Consulta en línea enviar correo electrónico

Descripción del producto Configuración del producto Productos relacionados INQUIRIR

Impact crusher Descripción del producto

The impact crusher is the latest generation of impact crusher developed by our company in the absorption of advanced technology at home and abroad,combined with the specific industrial and mining conditions of the domestic sand and gravel industry. Impact crusher are mostly used as secondary crusher and it well fits for crushing numerous medium and soft mineral &rock materials, such as limestone, feldspar, calcite, talc, barite, clay, tombar thite, kaolin, gypsum, and graphite, et

Impact crusher is a crushing machine that uses impact energy to crush materials. When the machine is working, driven by the motor, the rotor rotates at a high speed. When the material enters the action area of the plate hammer, it will collide with the plate hammer on the rotor and be broken, and then be thrown to the counterattack device to be broken again, and then it will be broken again from the counterattack lining plate. It bounces back to the action area of the blow hammer to be broken again. This process is repeated. The material enters the first, second, third and counterattack chambers from large to small for repeated crushing until the material is broken to the required particle size and discharged from the discharge port.

Impact crusher Configuración del producto

Model	Size of Feeder Opening(mm)	Max.feeding	Moter(kw)	Roter size(mm)	Capacity(t/h)	Overall Dimension(mm)
PF-1007	400*730	300	37-55	Φ1000*700	40-60	240015602660
PF-1010	400*1080	350	55-75	Φ1000*1050	60-90	244022502630
PF-1210	400*1080	350	110-132	Φ1250*1050	80-130	270023402900
PF-1214	400*1430	350	132-160	Φ1250*1400	120-180	270026902890
PF-1315	860*1520	450	180-260	Φ1300*1500	180-230	310032802670
