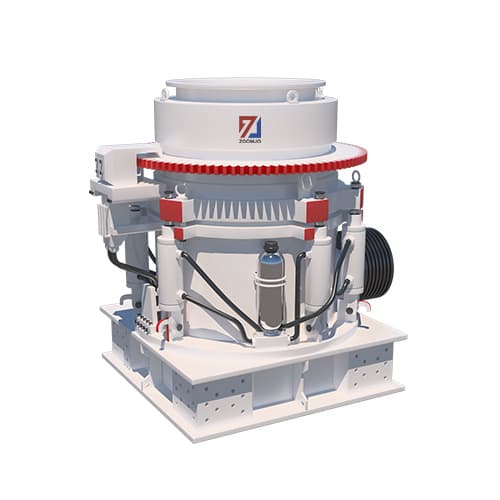

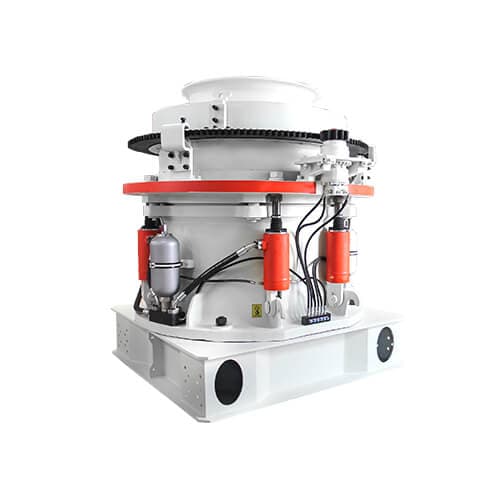

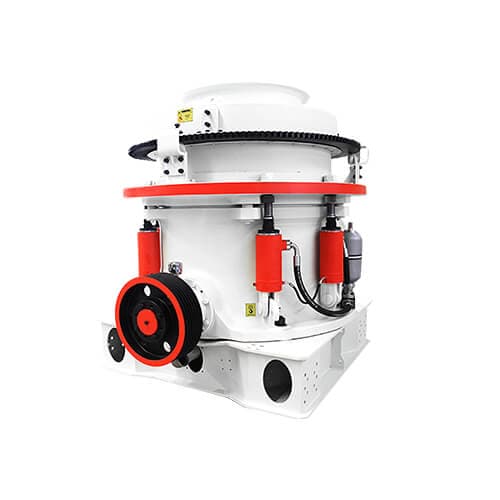

Hydraulic Cone Crusher

Cone crusher is widely used for the metallurgical industry, construction material industry, road building industry,chemical industry and silicate industry etc. The paryicle size is even and using this crusher decreases the circulating, and using multi-cylinder hydraulic clearing system can decrease downtime and save the working strength

Capacity:

45-1200t/h

Input size:

90-630mm

Output size:

175-235 mm

Solicitar presupuesto Consulta en línea enviar correo electrónico

Descripción del producto Configuración del producto Productos relacionados INQUIRIR

Hydraulic Cone Crusher Descripción del producto

The hydraulic cone crusher is a high-performance crushing equipment designed in combination with the performance of Chinese metal materials. In all type of cone crusher, this machine has low energy consumption, large crushing force, high production capacity, high degree of automation, excellent product particle shape and low cost of wear parts. It is mainly used in the second and third stages of crushing in metal mines and construction sand and stone processing and is mainly used for the crushing of medium and high hard materials.

When hydraulic cone crusher is working, the motor drives the eccentric bearing bushing, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and sometimes far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

Hydraulic Cone Crusher Configuración del producto

Model	Cavity type	Open side feeding size(mm)	Closed side feeding size(mm)	Min outlet side (mm)	Capacity(t/h)	Installed Power(KW)
HP100	Extra coarse	175	140	19	45-100	90
	Coarse	125	105	13
	Middle	100	70	10
	Fine	71	50	9
	Extra fine	33	20	6
HP200	Coarse	235	190	19	65-250	160
	Middle	171	120	16
	Fine	150	95	13
	Extra fine	116	70	8
HP300	Extra coarse	265	230	25	85-440	220
	Coarse	240	210	20
	Middle	190	150	15
	Fine	145	105	11
	Extra fine	120	80	8
HP400	Extra coarse	360	290	30	135-625	315
	Coarse	310	250	25
	Middle	260	196	20
	Fine	182	110	13
	Extra fine	135	90	10
HP500	Extra coarse	370	330	38	200-790	400
	Coarse	320	290	28
	Middle	245	210	22
	Fine	180	130	13
	Extra fine	150	95	10
HP800	Extra coarse	450	352	38	265-1200	630
