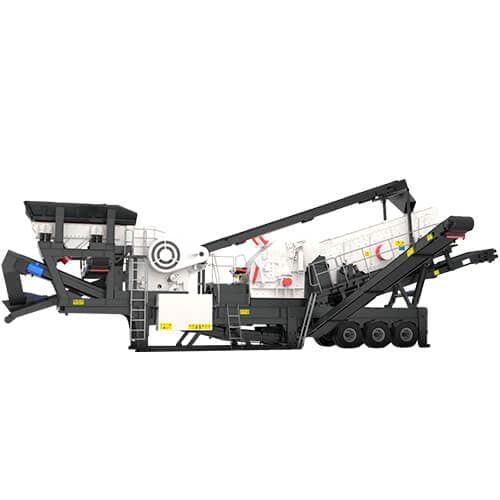

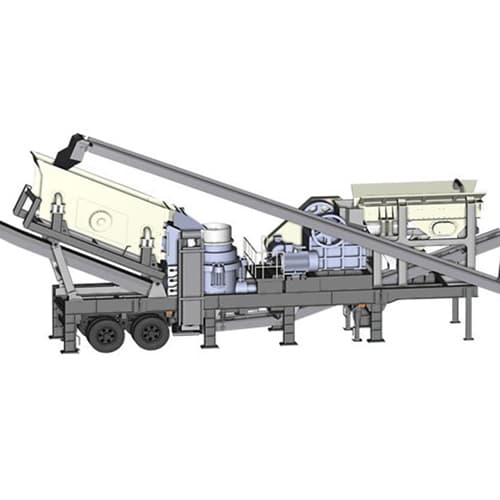

Four combination mobile crusher

The four-combination mobile crushing station integrates coarse crushing, medium crushing and fine crushing. It can complete the operation independently without other equipment. It is economical, applicable, simple and efficient, and is suitable for small and medium-sized production scales.

Capacity:

30-180t/h

Input size:

≤350*≤500mm

Overall size:

12500 x 2500 x 4500mm

Solicitar presupuesto Consulta en línea enviar correo electrónico

Descripción del producto Configuración del producto Productos relacionados INQUIRIR

Four combination mobile crusher Descripción del producto

Four-combination mobile crushing station can provide primary crushing jaw crusher according to customer's requirements of feeding granularity and discharging granularity, and secondary crushing is equipped with cone crusher and impact crusher and other models to choose from, which can be flexibly configured according to customer needs .

Four-combination mobile crushing station, the material is pre-selected by the feeder, crushed by the primary crushing and secondary crushing crusher, and then forms a closed-circuit system through the vibrating screen to realize the cyclic crushing of the material, which can effectively reduce the crushing process. Conveyor output for continuous crushing operation. The exchange system of different models of feeding unit, crushing unit and screening unit is realized on the same body, and the matching between the systems of the whole machine is suitable for a wider range of occasions and has a stronger crushing function.

Four combination mobile crusher Configuración del producto

Model	Corollary equipment	Corollary equipment			Overall size(mm)
		Model	Input size(mm)	Capacity(t/h)
S-E46-PF1007	3YZK1237	PE400×600	≤350	30-50	12500 x 2500 x 4500
	GZD650×2300	PF1007
S-E57-PF1010	3YZK1545	PE500×750	≤425	50-100	13000 x 2500 x 4500
	ZSW850×3000	PF1010
S-E69-PF1214	3YZK1848	PE600×900	≤500	100-180	15800 x 2550 x 4500
	ZSW9638	PF1214
S-E57-Q300	3YZK1545	PE500×750	≤425	50-100	13000 x 2500 x 4500
	ZSW850×3000	HP200
S-E69-Q400	3YZK1860	PE600X900	≤500	100-180	15800 x 2550 x 4500
	ZSW960 x 3800	HP300
