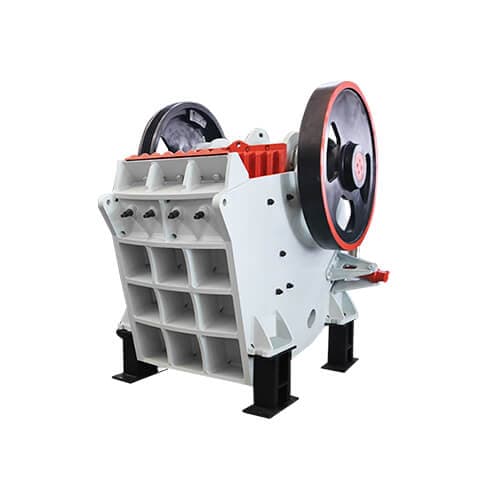

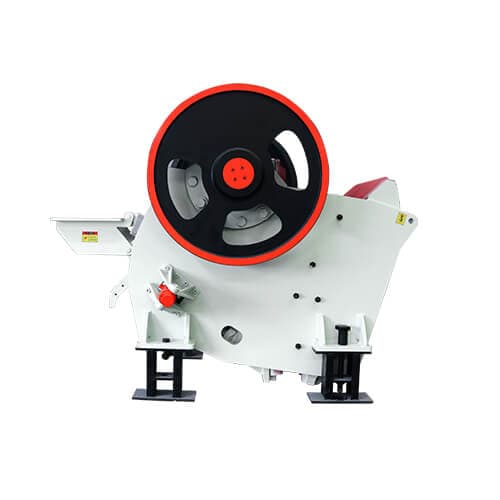

European Jaw Crusher

European Version Jaw Crusher is a new generation of high-efficiency jaw crusher developed by our company. It has a new design concept, structural upgrade,and has the advantages of large crushing ratio and high.

Max feed size:

380-1300mm

Motor power:

45-335kw

Production:

35-1200t/h

Solicitar presupuesto Consulta en línea enviar correo electrónico

Descripción del producto Configuración del producto Productos relacionados INQUIRIR

European Jaw Crusher Descripción del producto

European Version Jaw Crusher with Hydraulic Closed side setting. Can easily, quickly and precisely make the CSS adjustment.The fabricated frame with annealing treatment , making the machine sturdy and durable. This machine has a large and deep crushing cavity, and the designed crushing angle is an acute angle, so a very large crushing ratio can be achieved.

The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.

European Jaw Crusher Configuración del producto

Model	Inlet size(mm)	Maximum feed size(mm)	Outlet size(mm)	Processing capacity(t/h)	Motor(KW)
C100	630×1000	580	80-180	110-230	90
C110	870×1100	720	85-220	160-380	110
C130	1100×1300	960	120-260	260-680	185
C145	1100×1450	1080	130-275	320-950	220
C160	1200×1600	1180	165-320	550-1100	250
C200	1500×2000	1200	175-320	760-1375	400
