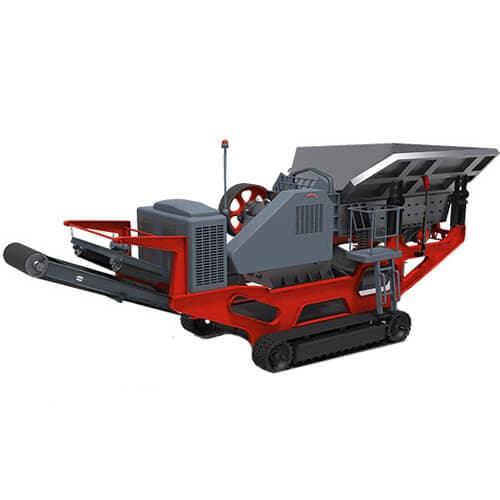

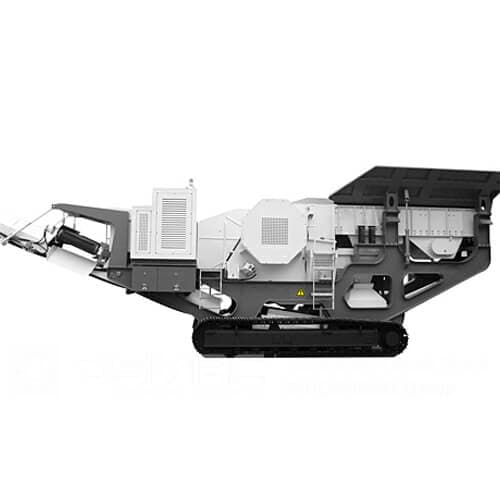

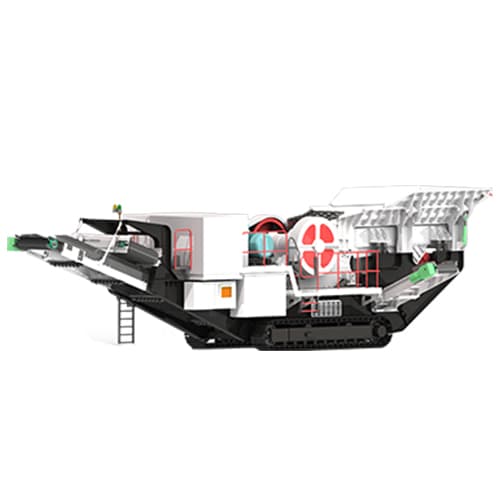

Crawler jaw crusher

Crawler-type mobile crushing station is a kind of high-efficiency crushing equipment. It adopts crawler-type vehicle chassis to walk, with advanced technology and complete functions. It has excellent work station mobility and work site adaptability.

Capacity:

40-300 t/h

Feed Size:

425-750mm

Adjustment range of discharge opening:

50-275

Solicitar presupuesto Consulta en línea enviar correo electrónico

Descripción del producto Configuración del producto Productos relacionados INQUIRIR

Crawler jaw crusher Descripción del producto

The crawler-type mobile crushing station is light in weight and small in size, and is especially suitable for working in narrow sites. There is no need for various preliminary preparations before the installation of the fixed crushing station, and the station adjustment can be completed in a short time, and it can enter the working state at any time. This reduces material handling operations and facilitates coordination of all auxiliary machinery.

The kinetic energy of the crawler mobile crusher comes from the equipped motor. During operation, after the stones that meet the particle size requirements enter the crusher, a series of crushing work is carried out by the equipment in the machine, and then the screening process is carried out, and the qualified stones enter the lower part of the crusher. Qualified stone products can be discharged from the discharge device, and the rest of the materials that do not meet the requirements will be returned to the machine to continue processing.

Crawler jaw crusher Configuración del producto

Model	CPGE0750	CPGE0960	CPGE1175	CPGE1308
Hopper	Integrates steel structure		Foldable steel structure
Feeder	GZT0724	GZT0932	GZT1148	ZSW6013
Jaw crusher	PE500×750	PE600×900	PE750×1060	PEW1208
Max feed size(mm)	425	500	630	750
Adjustment range of discharge opening	50-100	65-180	80-180	100-275
Capacity(t/h)	40-80	60-120	150-200	200-300
Discharge conveyor	B800	B800	B1000	B1200
Unearthed belt	B500	B500	B500	B650
Hydraulic system	YC10	YC20	YC30	YC30
Track assembly	T30	T40	T60	T60
Generators	150GF	200GF	250GF	300GF
